 Excel > JExcel API > How to Add Between Validation to Excel Cells

How to Add Between Validation to Excel Cells

Java Excel API is an open source java library to read, write and modify Excel spread sheets. This requires the library jxl-2.6.12.jar to be in classpath. The following example shows how to add between validation to Cells in Excel Spread sheet.

File Name  :
com/bethecoder/tutorials/jexcelapi/write/NumberValidationTest2.java
Author  :  Sudhakar KV
Email  :  [email protected]

package com.bethecoder.tutorials.jexcelapi.write;

import java.io.File;
import java.io.IOException;

import jxl.Workbook;
import jxl.read.biff.BiffException;
import jxl.write.Blank;
import jxl.write.WritableCellFeatures;
import jxl.write.WritableSheet;
import jxl.write.WritableWorkbook;
import jxl.write.WriteException;

public class NumberValidationTest2 {

  /**
   @param args
   @throws IOException
   @throws IOException
   @throws WriteException
   @throws BiffException
   */
  public static void main(String[] argsthrows IOException, WriteException {
    //Creates a writable workbook with the given file name
    WritableWorkbook workbook = Workbook.createWorkbook(new File("C:/JXL/Num-validations2.xls"));

    WritableSheet sheet = workbook.createSheet("My Sheet"0);

    //Add a Blank cell with number validation
    Blank blankCell = new Blank(00);

    //Throws an error when entered number is not between 20-40 inclusive
    WritableCellFeatures cellFeatures = new WritableCellFeatures();
    cellFeatures.setNumberValidation(2040, WritableCellFeatures.BETWEEN);
    blankCell.setCellFeatures(cellFeatures);
    sheet.addCell(blankCell);

    blankCell = new Blank(10);
    //Throws an error when entered number is between 20-40 inclusive
    cellFeatures = new WritableCellFeatures();
    cellFeatures.setNumberValidation(2040, WritableCellFeatures.NOT_BETWEEN);
    blankCell.setCellFeatures(cellFeatures);
    sheet.addCell(blankCell);

    //Writes out the data held in this workbook in Excel format
    workbook.write()

    //Close and free allocated memory
    workbook.close()
  }

}

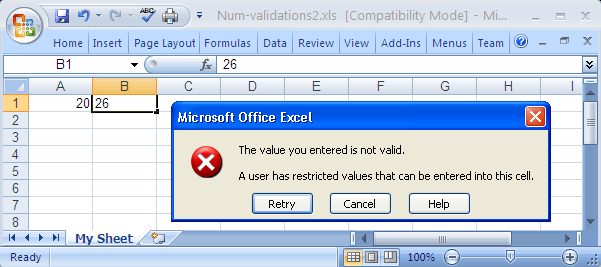

It gives the following output,
