 Excel > JExcel API > How to add Border to Excel Cells

How to add Border to Excel Cells

Java Excel API is an open source java library to read, write and modify Excel spread sheets. This requires the library jxl-2.6.12.jar to be in classpath. The following example shows how to set Cell border in Excel Spread sheet.

File Name  :
com/bethecoder/tutorials/jexcelapi/write/CellBorderTest.java
Author  :  Sudhakar KV
Email  :  kvenkatasudhakar@gmail.com

package com.bethecoder.tutorials.jexcelapi.write;

import java.io.File;
import java.io.IOException;

import jxl.Workbook;
import jxl.format.Border;
import jxl.format.BorderLineStyle;
import jxl.read.biff.BiffException;
import jxl.write.Label;
import jxl.write.WritableCellFormat;
import jxl.write.WritableSheet;
import jxl.write.WritableWorkbook;
import jxl.write.WriteException;

public class CellBorderTest {

  /**
   @param args
   @throws IOException
   @throws IOException
   @throws WriteException
   @throws BiffException
   */
  public static void main(String[] argsthrows IOException, WriteException {
    //Creates a writable workbook with the given file name
    WritableWorkbook workbook = Workbook.createWorkbook(new File("C:/JXL/Borders.xls"));

    WritableSheet sheet = workbook.createSheet("My Sheet"0);

    /**
     * Add cells with different border styles
     */
    addCell(sheet, Border.LEFT, BorderLineStyle.DOTTED, 11"Left - dotted");
    addCell(sheet, Border.RIGHT, BorderLineStyle.DASHED, 13"Right - dashed");
    addCell(sheet, Border.TOP, BorderLineStyle.DOTTED, 15"Top - dotted");
    addCell(sheet, Border.BOTTOM, BorderLineStyle.DASHED, 17"Bottom - dashed");
    addCell(sheet, Border.ALL, BorderLineStyle.THIN, 19"All - thin");

    //Writes out the data held in this workbook in Excel format
    workbook.write()

    //Close and free allocated memory
    workbook.close()
  }

  private static void addCell(WritableSheet sheet,
      Border border,
      BorderLineStyle borderLineStyle,
      int col, int row, String descthrows WriteException {

    WritableCellFormat cellFormat = new WritableCellFormat();
    cellFormat.setBorder(border, borderLineStyle);
    Label label = new Label(col, row, desc, cellFormat);
    sheet.addCell(label);
  }
}

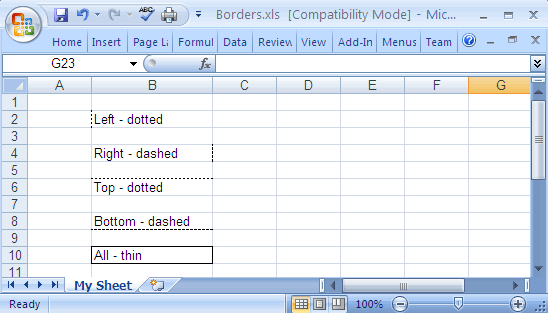

It gives the following output,
